Features high-performance STM32H743IIT6 microcontroller
Supports extensive connectivity with all I/O ports accessible
Includes onboard 64M Bit SDRAM and JTAG/SWD interfaces
Offers USB device/host modes and onboard power management
Enables easy integration with 2.0mm header pitch

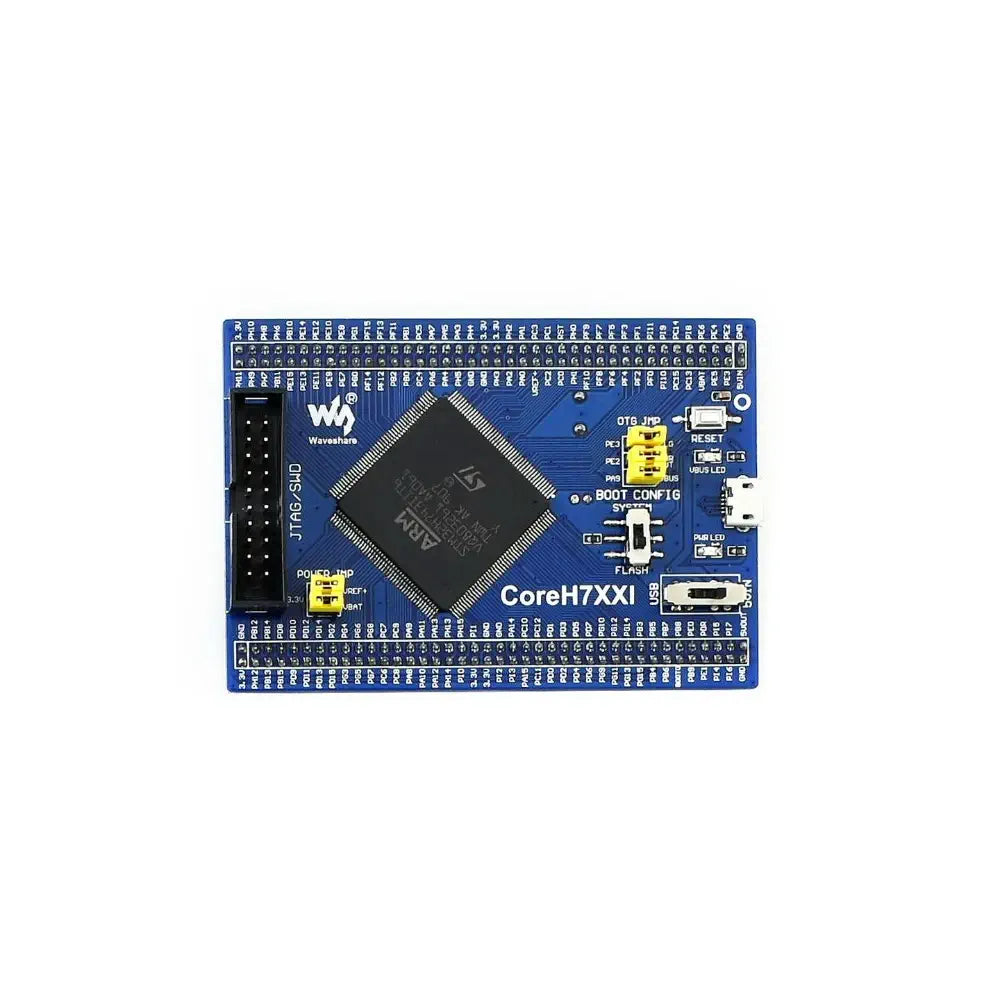

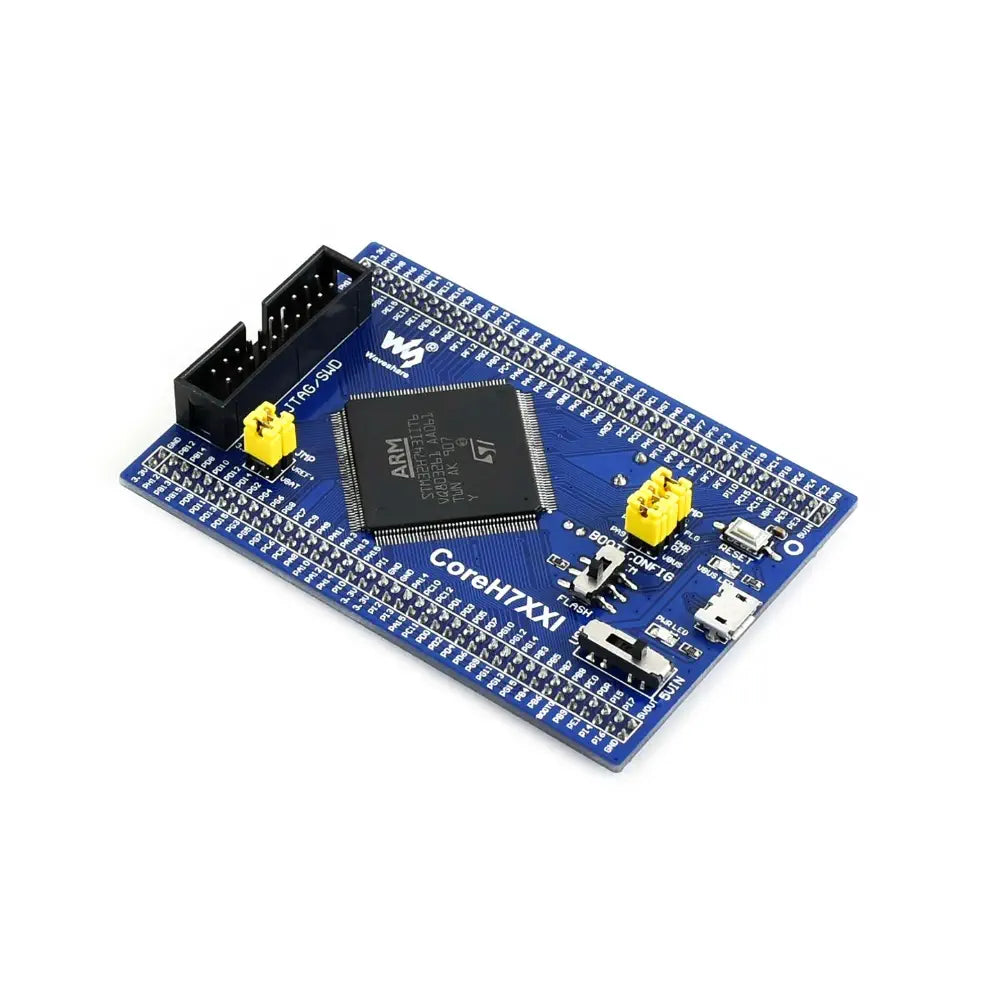

The Waveshare CoreH743I STM32H743IIT6 MCU Core Board is a sophisticated microcontroller unit designed for advanced application development within the STM32H family. It features a high-performance STM32H743IIT6 microcontroller, which includes a Cortex-M7 32-bit RISC core with a double-precision floating-point unit and Chrom-ART graphic accelerator. This board is equipped with a minimal ready-to-run system, integrating essential components such as a clock circuit and USB power management.

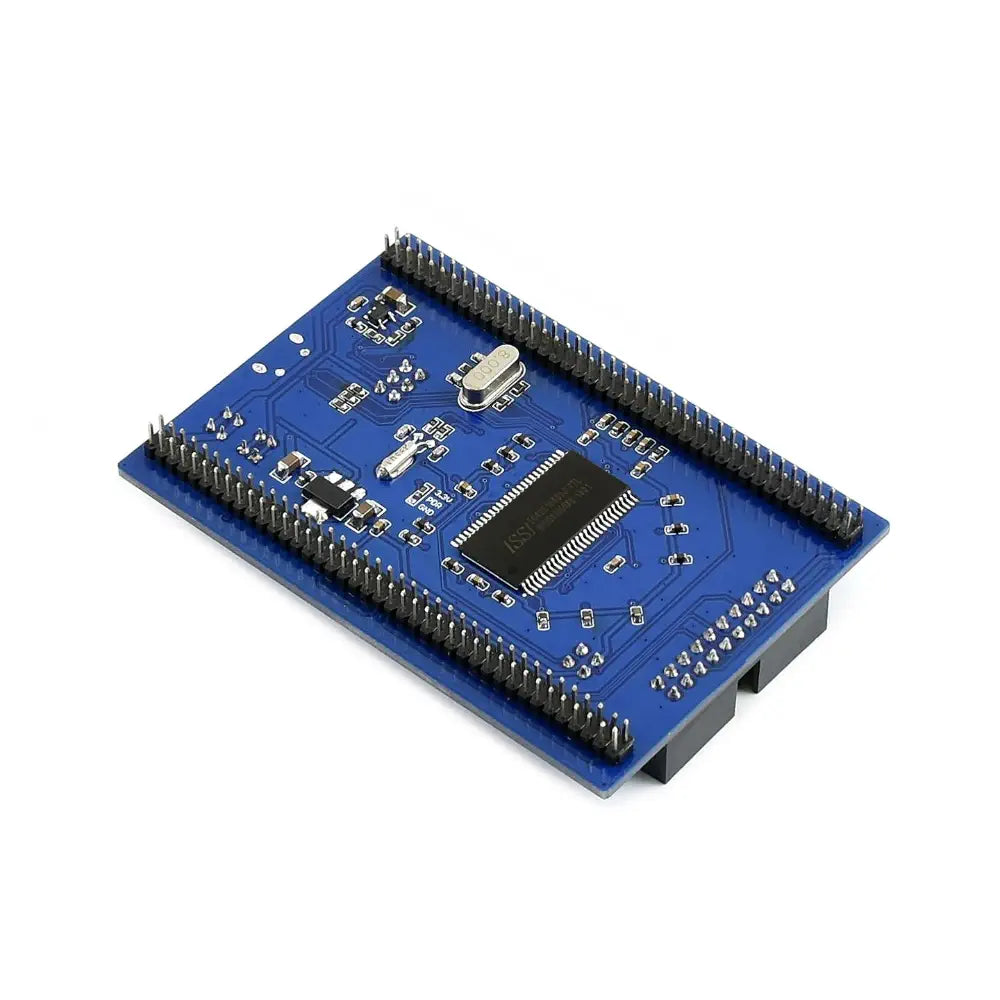

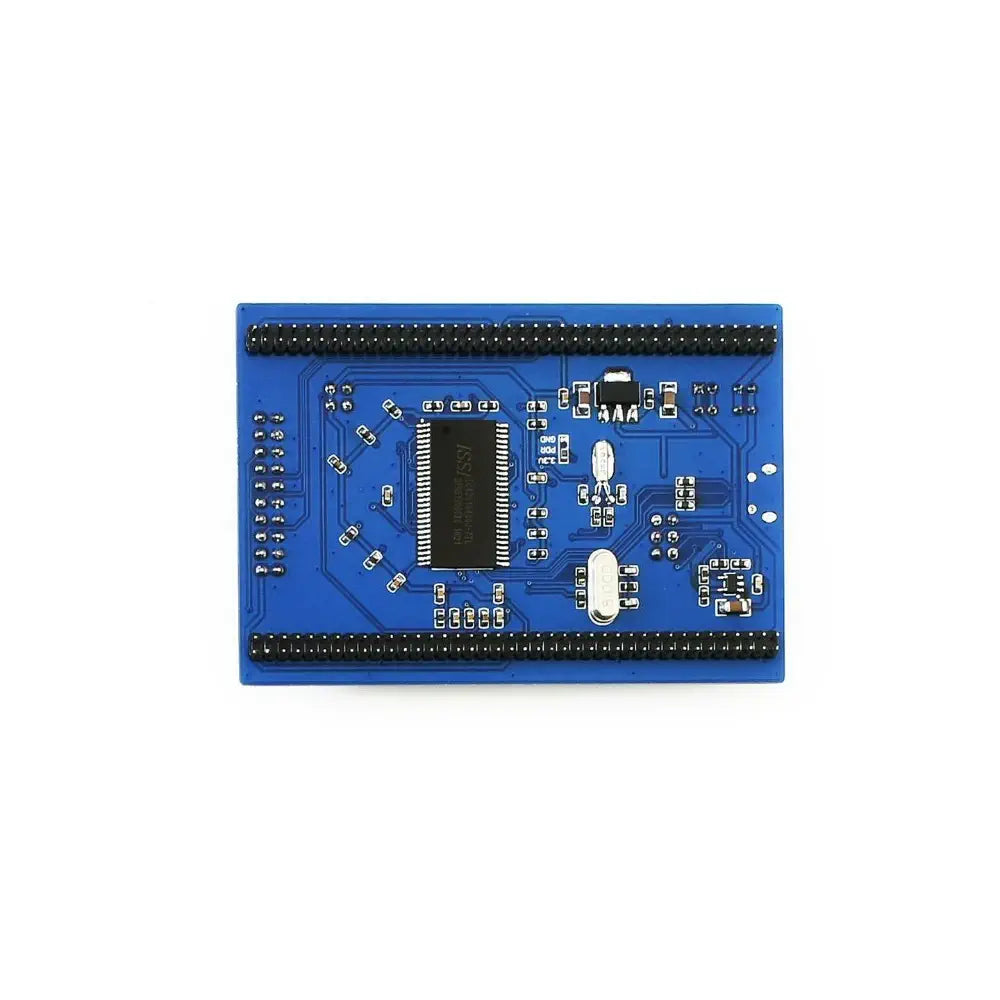

The board supports extensive connectivity options, with all I/O ports accessible via pin headers, facilitating further expansion. It includes onboard 64M Bit SDRAM and supports JTAG/SWD programming and debugging interfaces. The board's design allows it to be easily integrated into application boards with a 2.0mm header pitch.
Additional features include a USB connector that supports both device and host modes, a power supply switch, and various indicators such as VBUS and power LEDs. The board also provides options for boot mode selection and includes a reset button for convenience. It is powered either through a 5V input or a USB connection, with provisions for external power sources.
Note: CoreH743I provides a JTAG/SWD debugging interface but does not integrate any debugging function; a separate debugger is required.
MCU Communication Interfaces: 6 x SPI, 4 x USART, 4 x UART, 1 x LPUART, 3 x I2S, 4 x I2C, 2 x FDCAN, 1 x QUAD-SPI, 1 x DCMI, 4 x SAI, 1 x FMC, 2 x SDMMC, 10 x TIM, 5 x LPTIM, 1 x LTDC, 1 x SPDIFRX, 1 x HDMI-CEC, 1 x SWPMI, 2 x COMP, 2 x OPAMP, 1 x HRTIM, 1 x RNG, 1 x DM2D, 1 x MDIO, 1 x SysTick
1 x USB 2.0 OTG FS
1 x USB 2.0 OTG HS (supports external HS PHY through ULPI)
1 x 10/100 Ethernet MAC
AD & DA Converters: 3 x AD (16-bit); 2 x DA (12-bit)
