Sherline Flanged Cartridge Spindle ER-16 V Belt

Sherline Machining ToolsSKU: RB-She-2146
Manufacturer #: 6508

Price  :
Sale price €374,40

Tax included Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

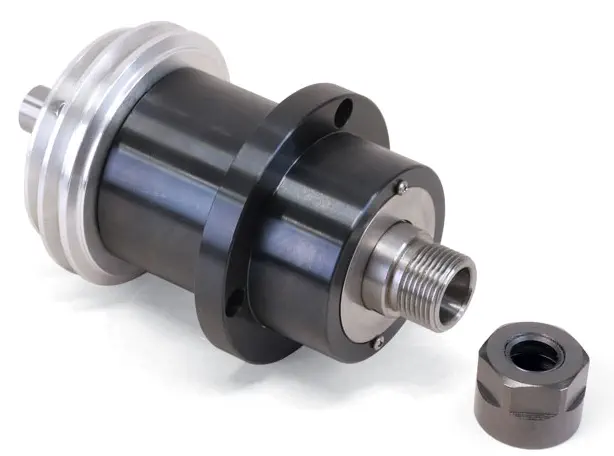

  • Sherline Flanged Cartridge Spindle ER-16 V Belt
  • Ensures high accuracy and smooth operation
  • Features durable bar stock steel with black oxide coating
  • Accommodates versatile use with 10mm central hole
  • Supports speeds up to 10,000 RPM with adjustable preload
  • Includes 3 mounting holes for easy installation

The Sherline Flanged Cartridge Spindle ER-16 V Belt is a precision-engineered component designed for industrial applications requiring high accuracy and smooth operation. The spindle body is crafted from bar stock steel and finished with a black oxide coating, ensuring durability and resistance to wear. It features a steel spindle shaft with a central hole of 10mm, allowing for versatile use with various materials. This model is equipped with an ER-16 spindle and a standard 2-step V belt pulley configuration, providing flexibility in its application.

The spindle incorporates lifetime lubricated bearings with adjustable preload, classified as Class 5 for enhanced precision and performance. These bearings ensure tighter tolerances, quieter operation, and cooler running temperatures, making the spindle suitable for continuous speeds up to approximately 4,000 RPM. For higher operating speeds, up to 10,000 RPM, a slightly looser preload setting may be required.

Installation of the flanged cartridge spindle is facilitated by its 2.25-inch diameter body, designed to be mounted through a 2.3-inch hole. The spindle is secured using three mounting holes on a 3.1-inch diameter flange, arranged at 120-degree increments. These holes are designed to accommodate 10-32 x 5/8-inch socket head cap screws, which are supplied with the product.

Note: The spindle is intended for light-duty applications and should not be used with long or out-of-round parts at high RPMs. It is not fully sealed against dust and should not be operated in a coolant bath. Proper shielding from coolant spray is recommended to prolong bearing life.

  • 1x Sherline Flanged Cartridge Spindle ER-16 V Belt
  • 1x 10-32 x 3/8″ Flat Point Set Screw
  • 1x Preload Nut
  • 1x Bearing Dust Cover Washer
  • 1x 10-32 x 5/8″ SHCS
  • Class 5 Headstock Bearings
  • 1x 10-32 x 3/16 Cup Point Set Screw
  • #2 x 1/4″ Self-Tapping Phillips Head Screws
  • 1x 2-Step V-Belt Pulley
  • 1x Flanged Cartridge Spindle Body
  • 1x ER-16 Spindle
  • 1x ER-16 collet nut
  • Spindle diameter: 2.25" (57.15 mm)
  • Spindle body length: 3.0" (76.2 mm)
  • Hole through spindle: 0.405" (10 mm)

Flanged Cartridge Spindle ER-16 V Belt - Dimensions

  • Spindle nose thread and taper: ER-16
  • Bearings: Two 20 mm, class 5, lifetime lubricated ball bearings with adjustable preload
  • End play (factory preload adjustment): 0.0002″ (0.0051 mm)
  • Maximum spindle speed: 10,000 RPM
  • Recommended continuous spindle speed: 4,000 RPM or less
  • Mounting provision: Three mounting holes at 120° increments, 0.2″ diameter with a 0.325″ diameter countersink, sized for 10-32 x 5/8″ socket head cap screws (supplied)
  • Spindle bearing dust cover washer
  • ER-16 collet nut ships with the ER-16 spindle headstocks
