CubePilot The Cube Orange+ Standard Set with ADS-B Carrier Board

CubePilotSKU: RB-Htl-38
Manufacturer #: HX4-06222

Coming soon See due date

This item isn't available yet. Subscribe to our Email alert to be notified when it finally arrives in stock.

Description

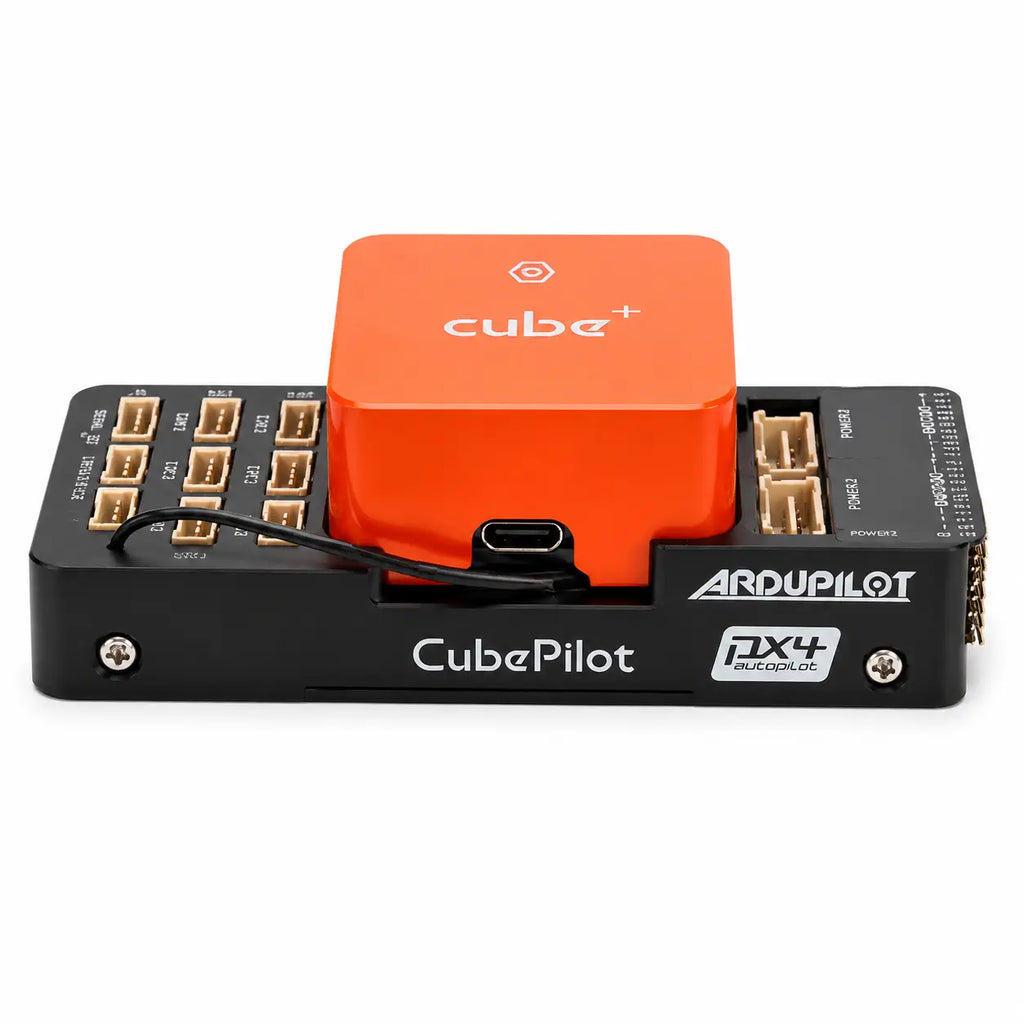

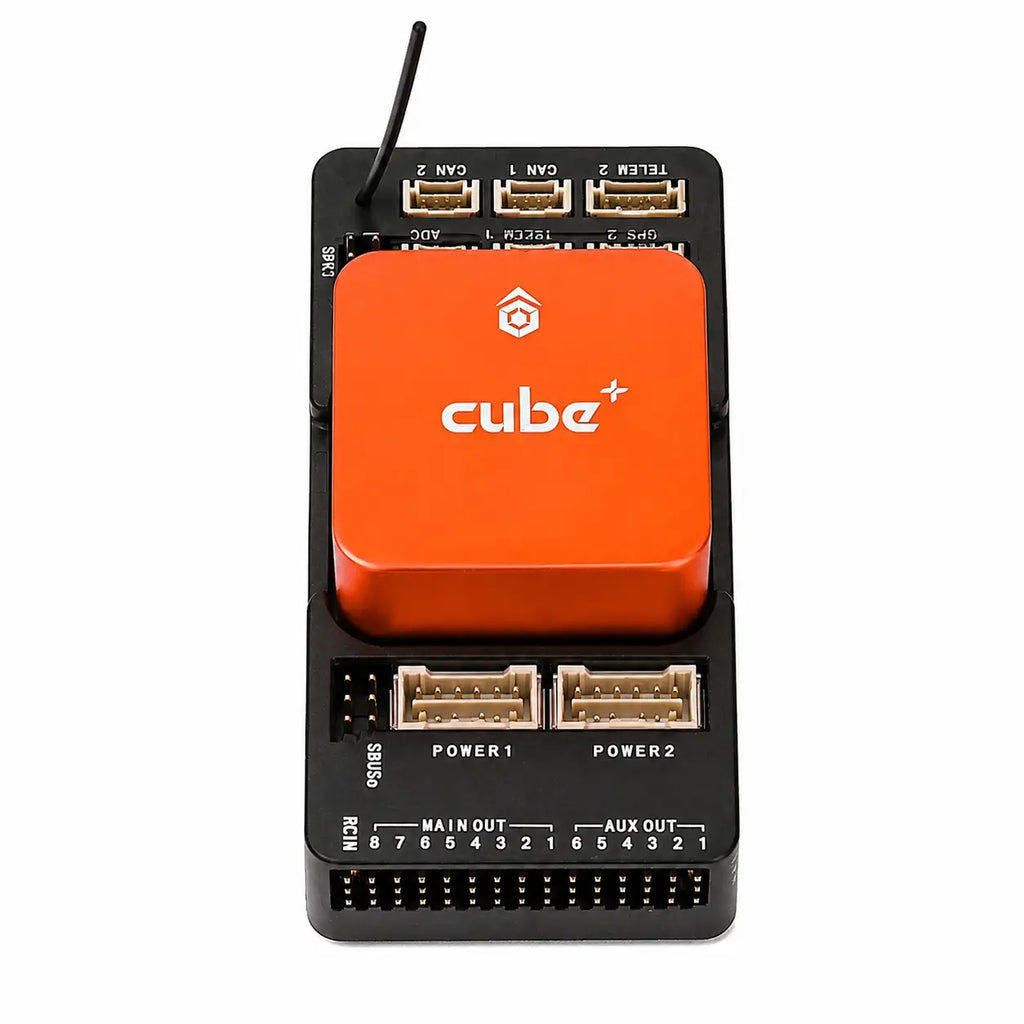

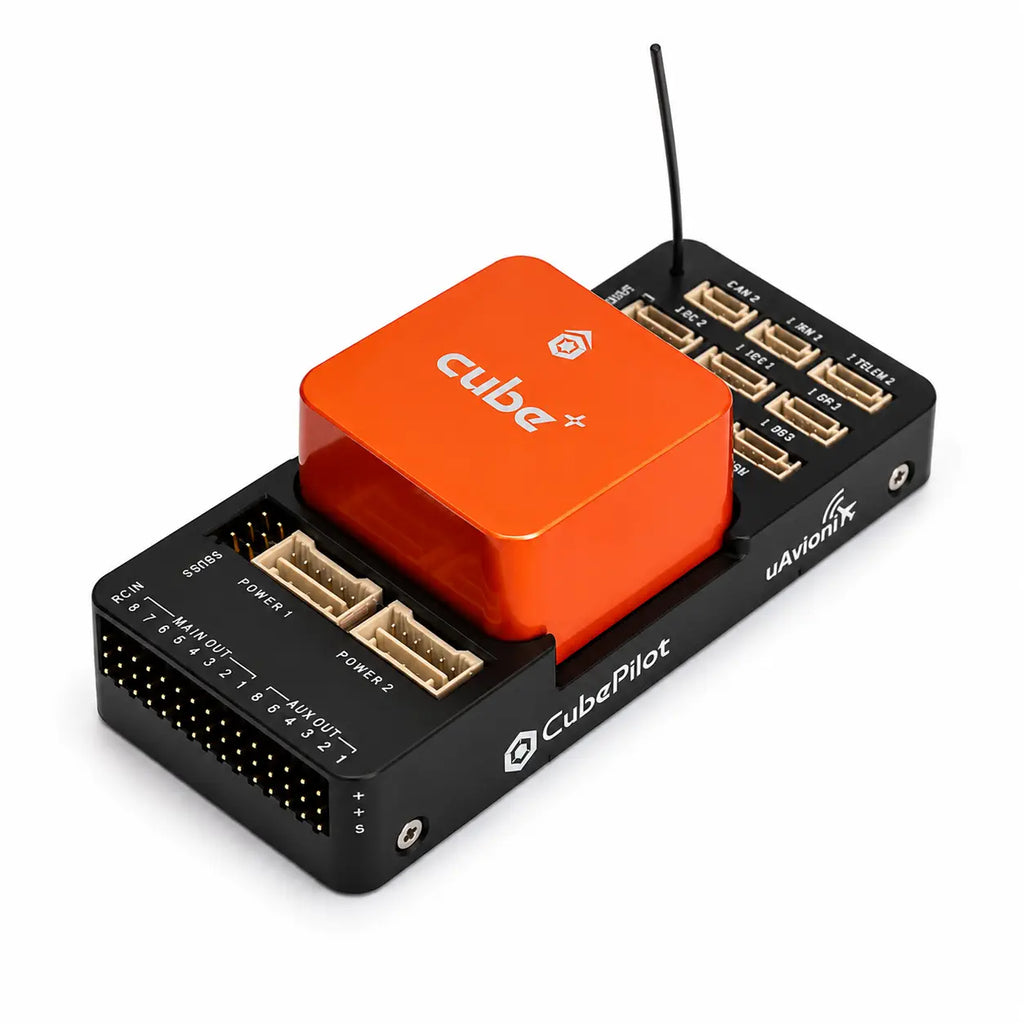

  • CubePilot The Cube Orange+ Standard Set with ADS-B Carrier Board
  • Cube Orange+ autopilot module preassembled on the ADS-B IN carrier board
  • Integrated uAvionix 1090 MHz ADS-B IN receiver with built in antenna
  • STM32H757 H7 microcontroller with 2 MB flash and 1 MB RAM
  • Triple redundant IMUs with mechanical isolation and temperature regulation
  • Dual power input with separate main and backup power connectors
  • Ships with Power Brick Mini and a full JST-GH cable set

The Cube Orange+ Standard Set pairs CubePilot's flagship autopilot module with the ADS-B carrier board, arriving as a wired assembly rather than a bare module. The carrier board breaks every autopilot signal out to labelled connectors, so telemetry radios, satellite navigation units, power monitoring and servo outputs all land where an installer expects them. Built into that same board is a receiver that listens for transponder broadcasts from nearby crewed aircraft and feeds their position and heading straight into the flight stack. Because the traffic picture reaches the autopilot directly, an operator can configure warnings or an automatic avoidance response rather than relying on visual lookout alone. The set suits multirotors, fixed wing aircraft and VTOL platforms flying in shared airspace where situational awareness carries regulatory weight.

Sensing rests on redundancy, with several independent inertial and pressure measurements cross referenced before the autopilot commits to an estimate, and the firmware carrying on through the remaining channels if one drifts. Isolating mounts and regulated sensor temperature keep that estimate trustworthy on airframes that vibrate hard or swing across a wide thermal range. Operators work through a ground control station over a telemetry link, planning missions, tuning parameters and reviewing logs once a flight is done. Deployment is quicker than with a bare module because the assembly ships with its power module and cable set, reducing integration to mounting the board and connecting peripherals. Commercial operators, systems integrators and research groups building on the open source ArduPilot stack are the natural users.

Why Buy From RobotShop
Authorized Distributor

Full manufacturer-backed warranty coverage and dedicated product support

Hassle-Free Delivery

Complete end-to-end logistics management, including customs clearance

Single Point of Contact

All pre-sales and post-sales support handled by our dedicated team

Documentation & Resources

Full access to detailed technical guides and a comprehensive knowledge base

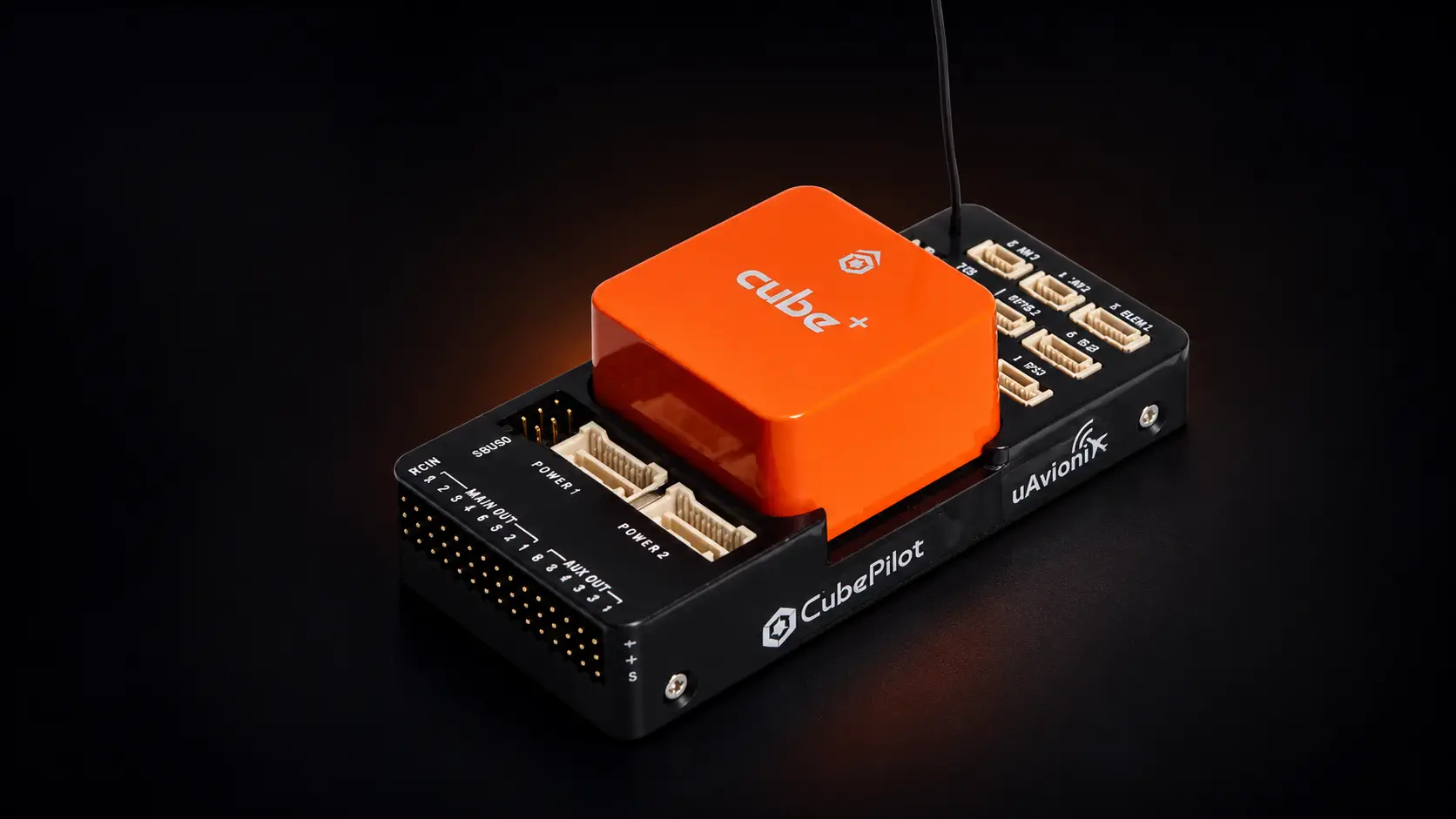

Cube Orange autopilot module seated on the ADS-B carrier board with antenna fitted
Autopilot Set
The Cube Orange+ Standard Set
Flagship Cube autopilot on the ADS-B carrier board, with traffic awareness built in and the cable set in the box.
Processor
STM32H757
ADS-B Receiver
1090 MHz
IMU Redundancy
Triple
Power Inputs
Two
Board Length
94.5 mm
Inside the Standard Set

What the ADS-B carrier board adds on top of the flagship Cube autopilot module.

H7 Class Processing

An STM32H757 microcontroller with 2 MB of flash and 1 MB of RAM runs the complete autopilot loop with headroom left over.

Triple Redundant IMUs

Three accelerometers and three gyroscopes let the firmware cross reference its state estimate and drop a failed sensor in flight.

ADS-B Traffic Awareness

An integrated uAvionix 1090 MHz receiver reports the position, altitude, speed and ID of nearby transponder equipped aircraft.

Temperature Regulated IMUs

Onboard heating resistors hold the inertial sensors near their optimum working temperature across a wide ambient range.

Dual Power Input

Separate main and backup power connectors give the autopilot a second supply path instead of borrowing from the servo rail.

Open Source Firmware

Runs the ArduPilot stack with full Mission Planner support for configuration, tuning and flight log review.

Capability name

Short description of this capability.

Capability name

Short description of this capability.

Capability name

Short description of this capability.

Capability name

Short description of this capability.

CubePilot The Cube Orange+ Standard Set with ADS-B Carrier Board

Model: HX4-06222

The manufacturer does not publish a packing list for this item. Cable and accessory quantities have varied between production batches, and items shown without a quantity may ship in different numbers. Confirm contents against the packing slip on receipt.

CubePilot The Cube Orange+ Standard Set with ADS-B Carrier Board

Model: HX4-06222

Module Footprint
Carrier Board Size
Carrier Mounting Hole Pattern
Mounting Hole Diameter

Values shown are from the manufacturer's reference. Assembled weight is not published by the manufacturer.

CubePilot The Cube Orange+ Standard Set with ADS-B Carrier Board

Model: HX4-06222

Microcontroller
STM32H757
Flash Memory
2 MB
RAM
1 MB
FMU Inertial Sensor
ICM-20649 30G integrated accelerometer and gyroscope
IMU Board Version
Version 3
IMU Board Sensors
ICM45686 / ICM20649, ICM20948 / ICM42688 / ICM45686_EXT2, ICM42688 / ICM45686
Barometer
MS5611
Accelerometers
Three
Gyroscopes
Three
Magnetometers
One
Barometers
Two
Redundancy
Triple redundancy
Isolation System
Yes
IMU Temperature Regulation
Yes, onboard heating resistors
Sensor Bus
SPI
Storage Interface
microSD via SDIO
Carrier Board
ADS-B IN carrier board
ADS-B Receiver
uAvionix 1090 MHz ADS-B IN, connected to internal Serial 5
ADS-B Antenna
Built in
ADS-B Firmware Compatibility
ArduPilot and PX4
Changes From Original Carrier Board
Intel Edison bay and debug USB ports removed
Carrier Board Size
94.46 x 44.29 x 31.42 mm
Carrier Mounting Hole Pattern
85 x 34.40 mm, 2.50 mm holes
Power Input
Dual, POWER1 main and POWER2 backup, Molex CLIK-Mate 2 mm
Peripheral Connectors
JST-GH 1.25 mm
Remote Signal Support
PPM / SBUS / DSM
I/O PWM Voltage
3.3 V / 5 V software selectable
PWM Servo Outputs
14 total, eight from I/O and six from FMU
Connecting Interfaces
Two I2C, two CAN, four UART, one console, one USB extender
Interface Connector
80 position Hirose DF17, 4 mm stacking height, 0.5 mm pitch
Mounting
30 x 30 mm M1.6 hole pattern, 35 x 35 mm footprint
Power Input Voltage
4.0 V to 5.5 V compliant, 3.8 V to 5.7 V absolute maximum
Maximum Input Current
350 mA at 5 V input
Ideal Operating Temperature
-10 °C to 55 °C
Maximum Operating Temperature in Emergencies
100 °C
Minimum Storage Temperature Tested
-70 °C
Waterproof Performance
Not waterproof, external protection required
Supported Firmware
ArduPilot
Manufacturing Origin
Taiwan
Product Lifecycle
Available
