Description
- Hokuyo UST-05LX Scanning Laser Rangefinder
- Detects objects accurately up to 15m
- Operates with a fast 25ms scan speed
- Ensures safe operation with class 1 laser
- Features robust IP65 protection
- Connects via Ethernet 100BASE-TX
The Hokuyo UST-05LX Scanning Laser Rangefinder is a compact and lightweight device designed to accurately detect the size, position, and movement direction of objects. This advanced rangefinder utilizes a semiconductor laser with a wavelength of 905nm, classified as safety class 1, ensuring safe operation. It offers a detection range from 0.06 meters to 5 meters for highly reflective surfaces and up to 2 meters for surfaces with lower reflectance, with a maximum detection distance of 15 meters. The device boasts an accuracy of +/-40mm and a repeated accuracy of less than 30mm, making it highly reliable for precise measurements.

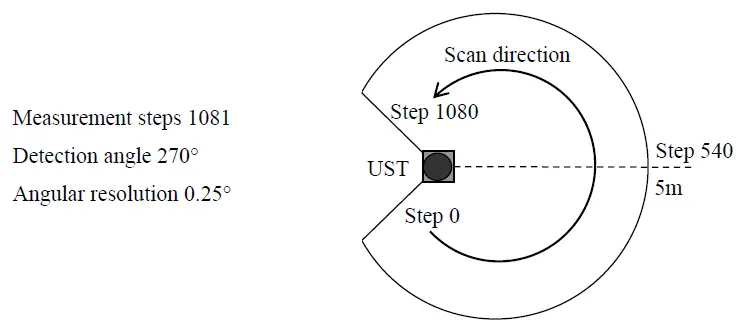

The rangefinder features a wide scan angle of 270 degrees and operates at a rapid scan speed of 25 milliseconds, facilitated by a motor speed of 2400 revolutions per minute. Its angular resolution of 0.25 degrees allows for detailed scanning and mapping of the environment. The device is equipped with an Ethernet 100BASE-TX interface for seamless connectivity and data transmission. It also includes a blue LED display to indicate power supply status.
Constructed with durability in mind, the rangefinder is housed in a polycarbonate front case and an aluminum rear case, providing robust protection. It is designed to withstand harsh environmental conditions, with an operational temperature range from -10°C to +50°C and storage capabilities from -30°C to +70°C. The device is resistant to vibrations and shocks, adhering to stringent EMC standards, and features an IP65 protective structure, ensuring it is dust-tight and protected against water jets.
Note: Ensure proper handling to avoid exposure to the laser beam, as it is a class 1 laser product.
- 1x Hokuyo UST-05LX Scanning Laser Rangefinder
- 50 x 50 x 70 mm
- Supply voltage: 12VDC/24VDC (operational range 10 to 30V ripple within 10%)
- Supply current: 150mA or less (450mA necessary during startup)
- Light source: Semiconductor laser, λ=905nm, laser safety class 1
- Detection range: 0.06m to 5m (white Kent sheet), 0.06m to 2m (diffuse reflectance 10%)
- Maximum detection distance: 15m
- Accuracy: +/-40 mm
- Repeated accuracy: σ<30mm
- Scan angle: 270°
- Scan speed: 25ms (motor speed 2400rpm)
- Angular resolution: 0.25°
- Startup time: Within 10 seconds
- Input: IP reset input, photo-coupler input (current 4mA at ON)
- Output: Synchronous output, photo-coupler open collector output 30VDC 50mA max
- Interface: Ethernet 100BASE-TX
- LED display: Power supply LED display (blue)
- Surrounding intensity: Less than 80,000lx
- Ambient temperature and humidity: -10°C to +50°C, below 85% RH
- Storage temperature and humidity: -30°C to +70°C, below 85% RH
- Vibration resistance: 10 to 55Hz double amplitude of 1.5mm for 2 hours in each X, Y, and Z direction
- Vibration resistance (operating): 55 to 150Hz 19.6m/s² sweep of 2 minutes for 30 minutes in each X, Y, and Z direction
- Shock resistance: 196m/s² (20G) in X, Y, and Z direction 10 times
- EMC standards: (EMI) EN61326-1:2013, EN55011:2009 + A1:2010; (EMS) EN61326-1:2013, EN61000-4-2:2009, EN61000-4-3:2006 + A1:2008 + A2:2010, EN61000-4-2012, EN61000-4-6:2009, EN61000-4-8:2010
- Protective structure: IP65
- Material: Front case: Polycarbonate, Rear case: Aluminum
